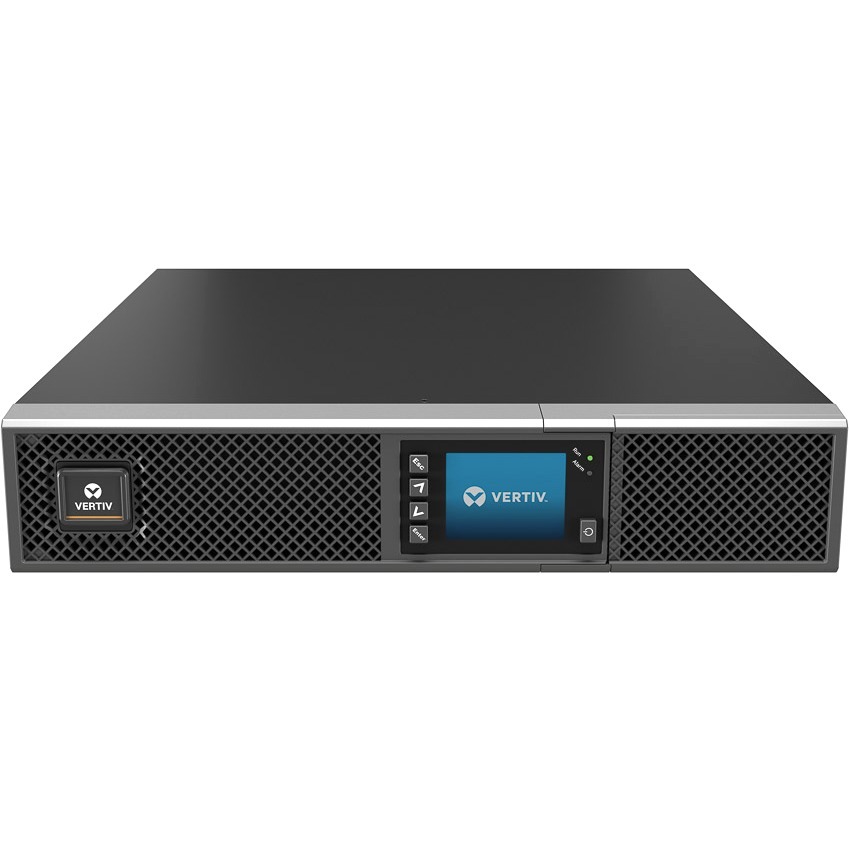

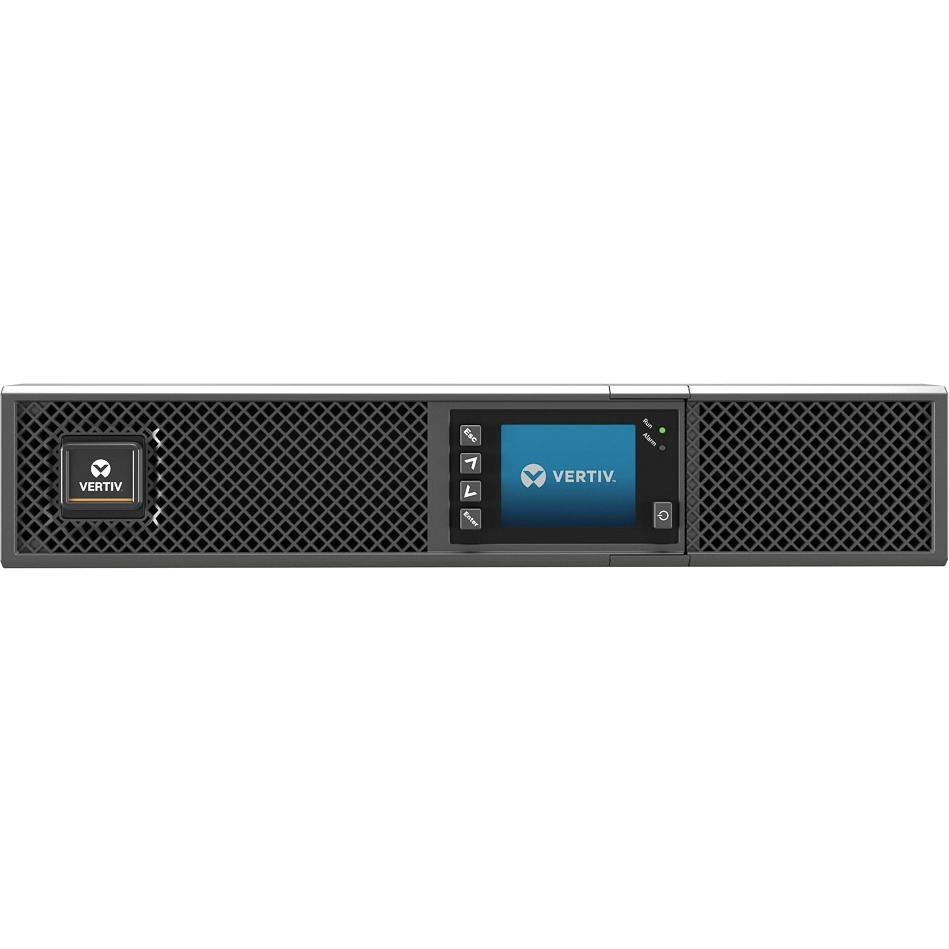

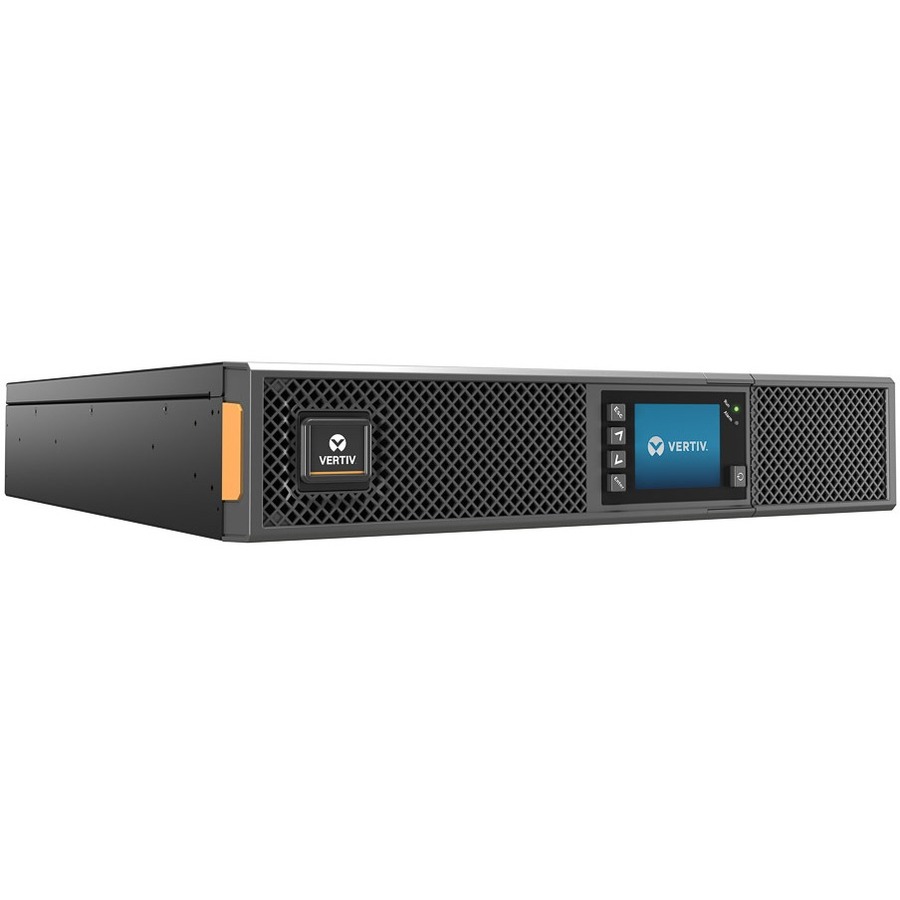

Product 8126116 Vertiv Liebert GXT5 UPS - 3000VA/2700W 120V

Reliable, easy-to-manage power protection and battery backup with 3000VA (2700W) capacity.
Highest power factor available on standard input connections.
Four individual programmable output receptacle for device control and management for optimum battery usage.
Its user-friendly interface includes color graphic display with gravity sensing feature.
It is 2019 ENERGY STAR® 2.0 certified and has higher operating efficiency in standard and eco-mode.

Check Availability

Detail

General Information
Manufacturer	Vertiv
Manufacturer Part Number	GXT5-3000LVRT2UXL
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Series	GXT
Product Name	GXT5 3000VA 120V UPS
Marketing Information	The Vertiv Liebert GXT5 UPS, with a capacity of 3000VA/2700W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications. More from the Manufacturer
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20RNEMA L5-30R
Receptacle Detail	6 x NEMA 5-20R1 x NEMA L5-30R
Emergency Power OFF	Yes
Cord Length	10 ft
Transfer Time	0 ns
Phase	Single Phase
Application/Usage	IT EquipmentMission Critical Equipment
Power Description
Load Capacity (VA)	3000 VA
Load Capacity (Watt)	2700 W
Input Voltage	120 V AC
Input Voltage Range	60 V AC - 150 V AC
Input Current	24 A
Output Voltage	120 V AC
Output Current	25 A
Input Frequency	70 Hz
Waveform Type	Sine Wave
Circuit Breaker	Yes
User Selectable Output	Typical 120V User Selectable Output: 110/115/120VAC (user-configurable); ±3%
Utility (AC) Mode Overload	>200% for 250ms 150- 200% for 2 seconds 125- 150% for 10 seconds 105-125% for 15 seconds
Controls/Indicators
Status Indicators	Color LCD
Interfaces/Ports
Serial Port	Yes
VGA	No
Modem (RJ-11)	No
EPO Port	Yes
USB (HID Compliant) Port	Yes
Battery Information
Number of Batteries	3
Battery Characteristics	Valve-regulated, Non-spillable
Battery Chemistry	Lead Acid
Battery Size	12V
Backup/Run Time (Full Load)	3 Minute
Backup/Run Time (Half Load)	9 Minute
Number of External Battery Cabinets	1
Backup/Run Time With External Battery Cabinet (Full Load)	17 Minute
Backup/Run Time With External Battery Cabinet (Half Load)	43.50 Minute
Battery Life	5 Year
Typical Battery Recharge Time	3 Hour
Hot Pluggable	Yes
Hot Swappable	Yes
Environmental Conditions
Environmental Sensors	Leak Detection SensorTemperature SensorHumidity Sensor
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-4°F (-20°C) - 140°F (60°C)
Maximum Operating Elevation	9842.52 ft
Maximum Storage Elevation	49212.60 ft
Physical Characteristics
Color Family	Black
Product Color	Black
Height	3.4"
Width	16.9"
Depth	21.3"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	66 lb
Miscellaneous
Package Contents	GXT5 3000VA 120V UPS 4 Post Rack Mounting Tower Stand USB Cable User Guide Safety Instruction Manual
Additional Information	Operating Temperature,°F (°C):+32 to +104 (0 to 40) Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C. Relative Humidity:0% to 95%, non-condensing Audible Noise: <48dBA max @ 3 ft. (1m) front and sides <48dBA, at 3 ft. (1m) rear
Certifications & Standards	UL1778, 4th Ed. FCC Part 15 Class A ANSI C62.41 Cat. B ISTA 1A
Software Included	Power Insight 2.2
Assembly Required	No
Energy Star	Yes
Country of Origin	China
TAA Compliant	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Restriction of Hazardous Substances (RoHS) 2Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty	3 Year
