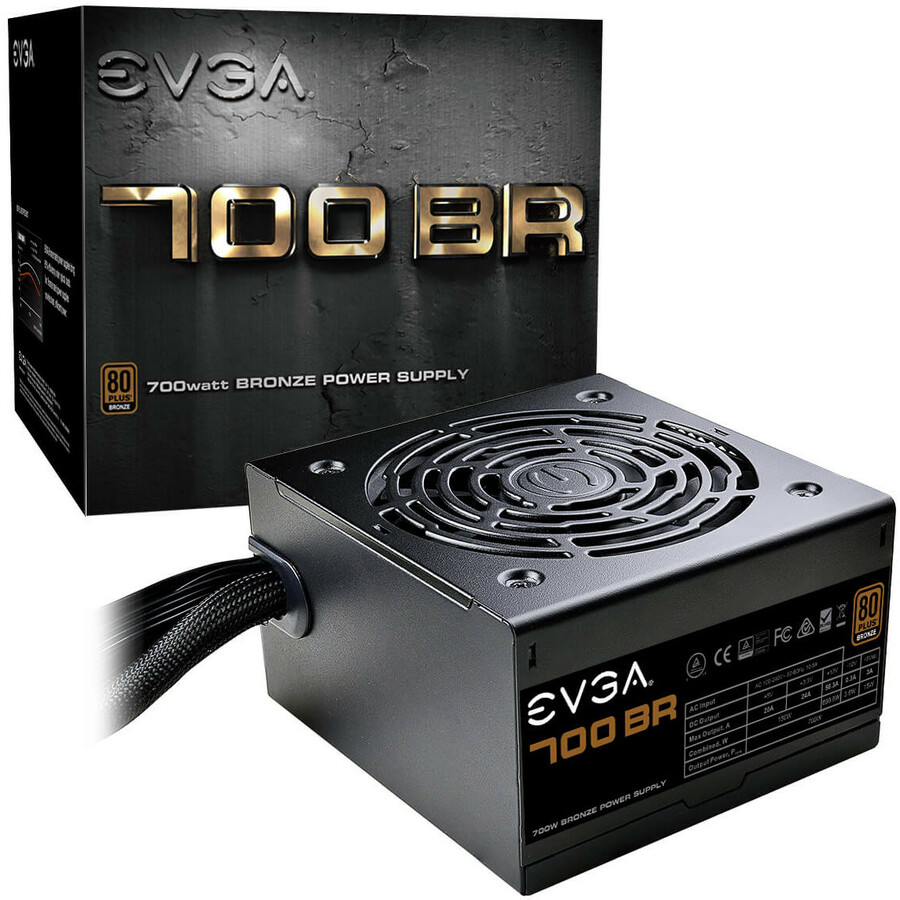

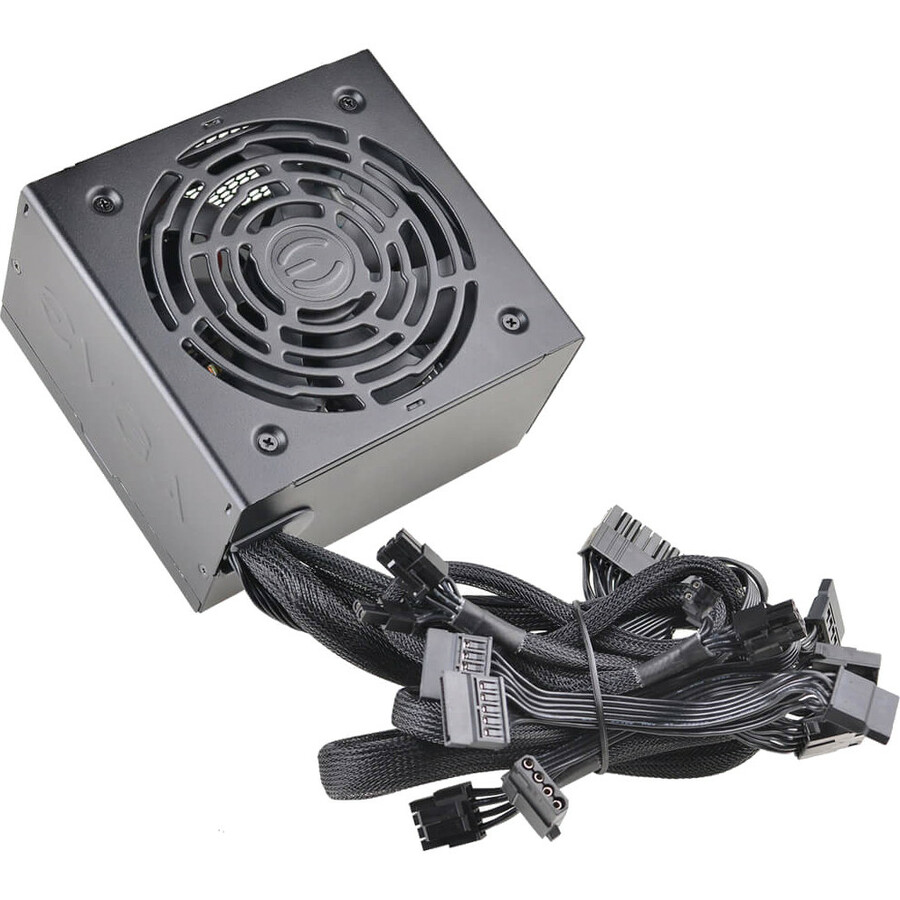

EVGA 700BR Power Supply
Internal - 120 V AC, 230 V AC Input - 5 V DC, 12 V DC, 3.3 V DC Output - 700 W - 1 +12V Rails - 1 Fan(s) - ATI CrossFire Supported - NVIDIA SLI Supported - 85% Efficiency
Call for $

/

Product Information

  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Single 12V. Rail
  • Active Power Factor Correction (PFC)
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 3 Year Warranty
  • DC-DC Converter improves 3.3V/5V stability
  • Quiet and Intelligent Auto Fan for near-silent operation
VirtualWarehouse UPSOK Recycled MinorityOwned WomenOwned NonReturnable
Check Availability
EA
Detail
General Information
Manufacturer EVGA Corporation
Manufacturer Part Number 100BR0700K1
Manufacturer Website Address http://www.evga.com
Brand Name EVGA
Product Series BR
Product Model 700BR
Product Name 700BR Power Supply
Marketing Information The EVGA 700BR Power Supplies are here. Designed with both beginner and enthusiast needs in mind, EVGA power supplies are the best choice to power next generation computers. Combining 700W of continuous power with exceptional performance, stunning efficiency, and reliable quality, the 700W BR power supply is what you need to build a solid foundation for your next system.
Product Type Power Supply
Technical Information
Specification Compliance ATX12V/EPS12V
Efficiency 85%
Number of Fans 1
Modular No
ATI CrossFire Supported Yes
NVIDIA SLI Supported Yes
Power Description
Number of +12V Rails 1
Input Voltage 120 V AC230 V AC
Output Voltage 5 V DC12 V DC3.3 V DC

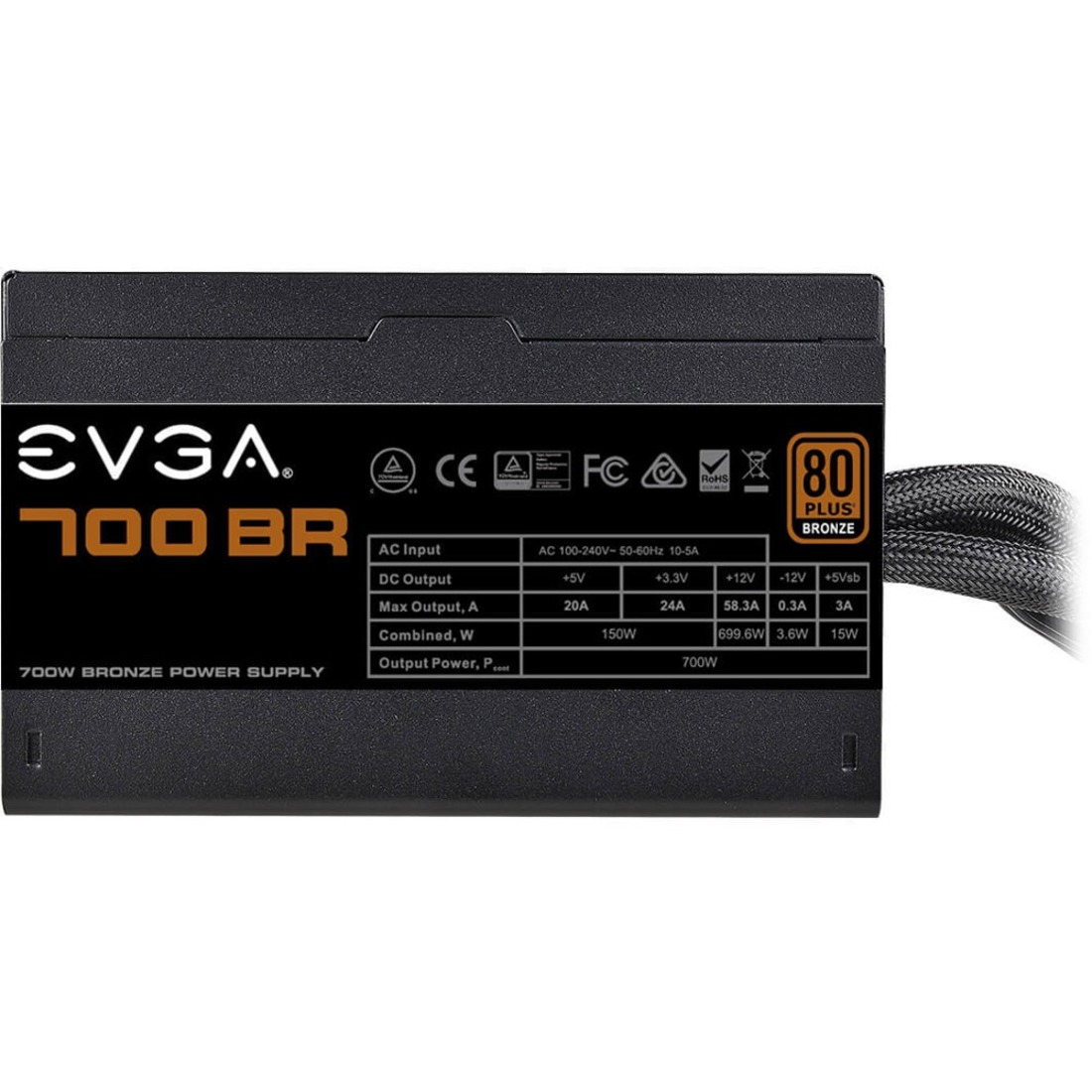

Output Voltage Detail 5 V DC @ 20 A12 V DC @ 58.3 A5 V DC @ 3 A12 V DC @ 300 mA3.3 V DC @ 24 A
Output Current 20 A58.30 A3 A300 mA24 A
Output Power 700 W
Physical Characteristics
Form Factor Internal
Height 3.3"
Width 5.9"
Depth 5.5"
Weight (Approximate) 4 lb
Miscellaneous
Certifications & Standards TÜVcTUVusTÜV Rheinland
Country of Origin China
Environmentally Friendly Yes
Energy Efficiency Certification 80 Plus Bronze
Energy Efficiency Compliance Energy-related Products Directive Lot 6 (ErP Lot 6)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
