6240783
6240783

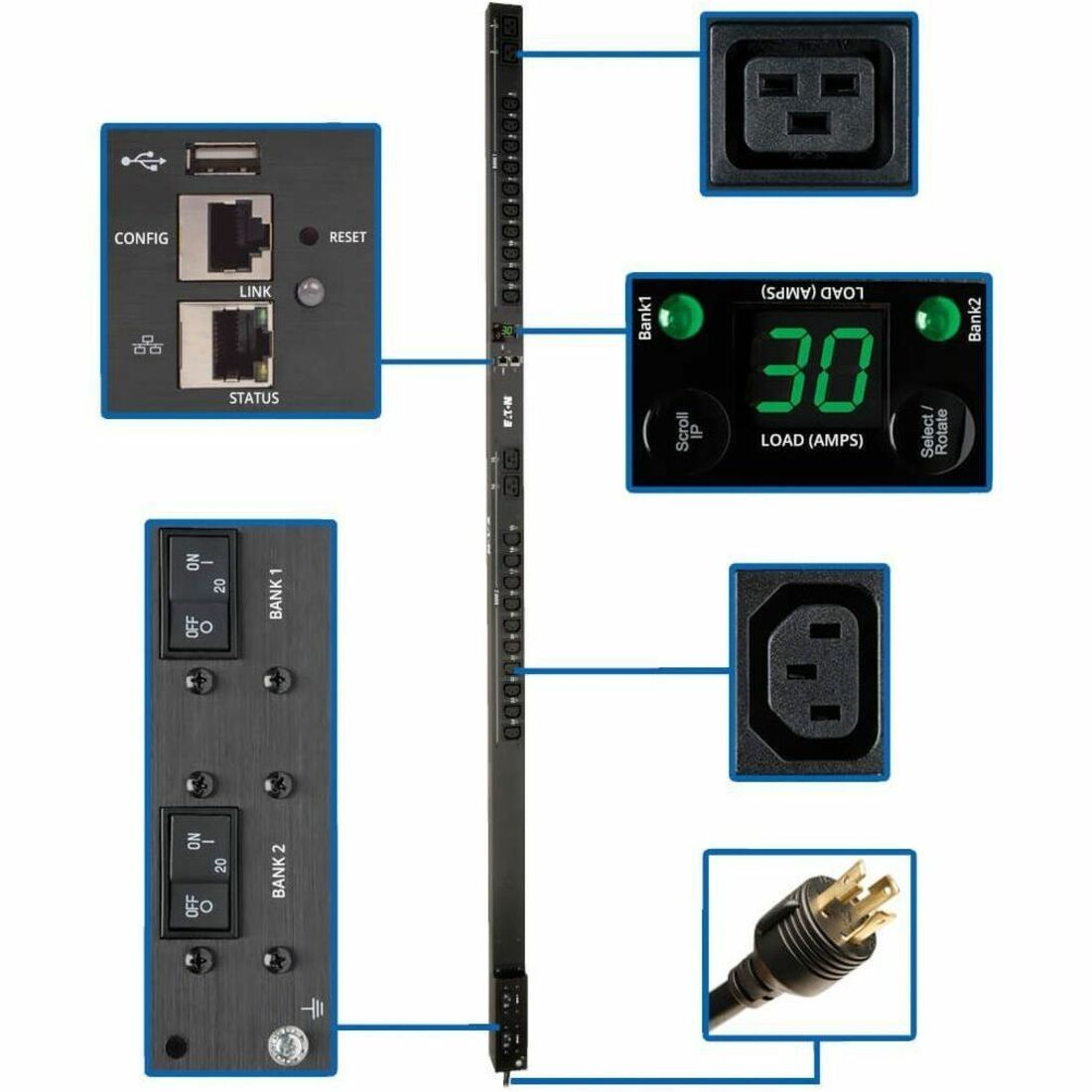

Eaton 5.5kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA
Switched - NEMA L6-30P - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 5800 VA - 0U - Vertical - Rack Mount - TAA Compliant
Call for $

/

Product Information

  • 5/5.8kW 208/240V 30A switched PDU
  • 24 individually controllable outlets-20 C13, 4 C19
  • Built-in LX Platform interface for remote access
  • Digital ammeter for on-site load monitoring in real time
  • NEMA L6-30P input with 10 ft. AC power cord
VirtualWarehouse UPSOK ManufacturerBrochure UserManual AboutBrand RichMarketing
Check Availability
EA
Detail
General Information
Manufacturer Eaton Corporation
Manufacturer Part Number PDUMV30HVNETLX
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite by Eaton
Product Model PDUMV30HVNETLX
Product Name PDUMV30HVNETLX 24-Outlet PDU
Marketing Information The PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet's on/off power status. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. More from the Manufacturer
Product Type PDU
Technical Information
PDU Type Switched
Phase Single Phase
Plug/Connector Type NEMA L6-30P
Receptacle Type IEC 60320 C19IEC 60320 C13
Receptacle Detail 4 x IEC 60320 C1920 x IEC 60320 C13
Protection Type Overload Protection
Power Description
Input Voltage 230 V AC
Output Voltage 230 V AC
Power Rating (Watt) 5800 W
Input Current 30 A
Management
Management Protocols:<br /> HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP
Physical Characteristics
Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 0U
Height 70"
Width 2.2"
Depth 2.7"
Weight (Approximate) 11.50 lb
Miscellaneous

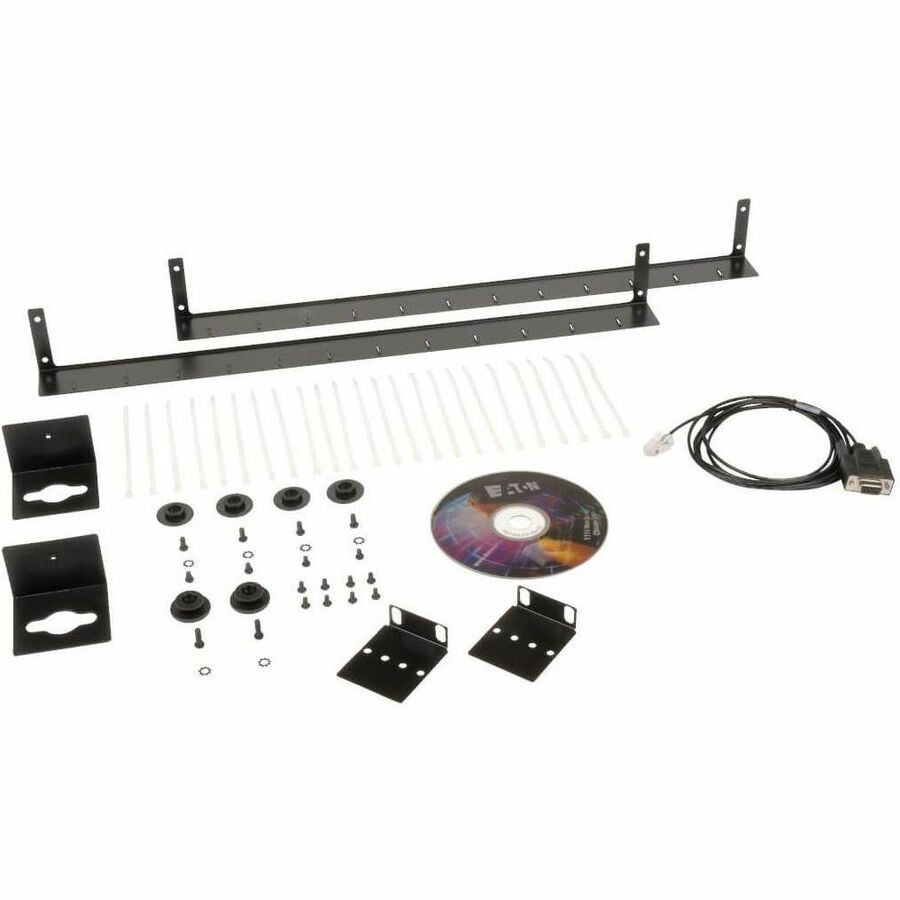

Package Contents PDUMV30HVNETLX 24-Outlet PDU Configuration Cable 24 x Cable Ties 2 x Cord Retention Brackets Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
