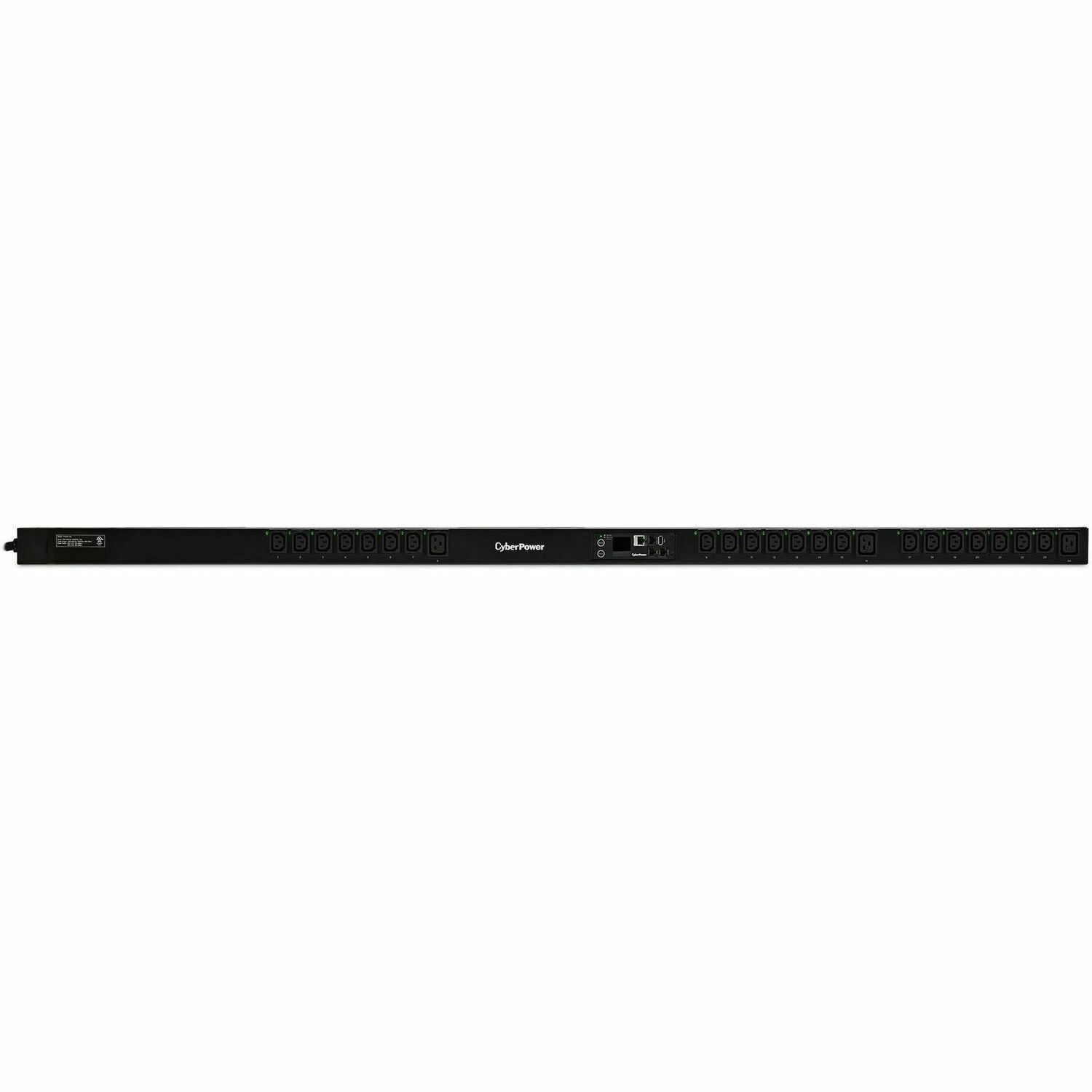

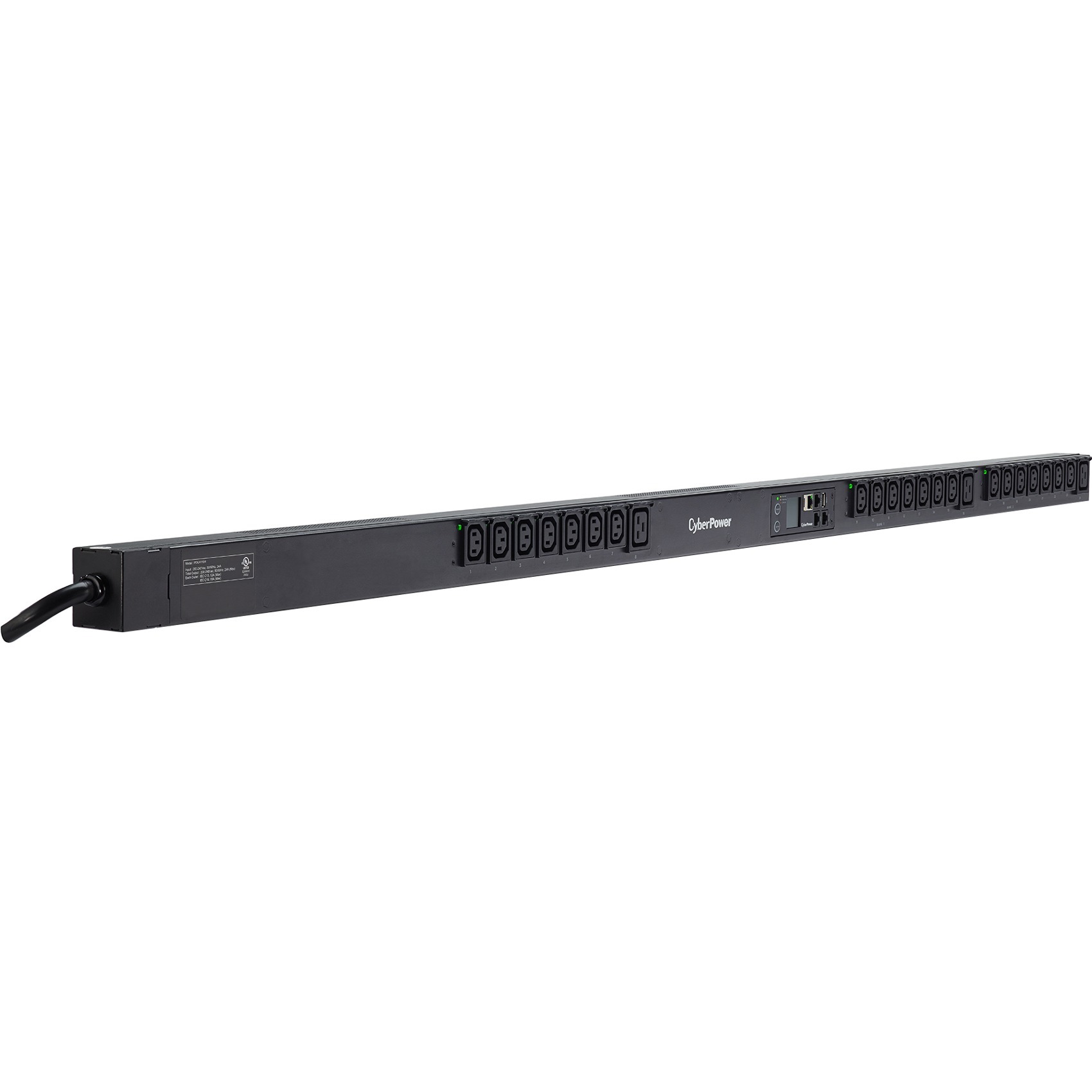

CyberPower PDU41104 Single Phase 200 - 240 VAC 20A Switched PDU
24 Outlets, 10 ft, NEMA L6-20P, Vertical, 0U, LCD, 3YR Warranty
Call for $

/

Product Information

  • 24-outlet (front)
  • Switch-Free Design
  • Remote and Local Monitoring
  • Automatic Event Notifications
  • Network-Grade Plugs and Outlets
VirtualWarehouse UPSOK ManufacturerBrochure UserManual AboutBrand FileAvailable
Check Availability
EA
Detail
General Information
Manufacturer CyberPower Systems, Inc
Manufacturer Part Number PDU41104
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series Switched PDU
Product Name PDU41104 Switched PDU
Marketing Information The CyberPower PDU41104, a 0U rackmount switched power distribution unit (PDU), provides 200-240V 20A output via 21 IEC-320 C13 + 3 IEC-320 C19 receptacles from a single NEMA L6-20P input power plug. The switched outlet receptacles can be managed over the network by using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control display. The PDU41104 offers outlets that can be turned on, turned off, or recycled on demand. Outlets can be programmed to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. Switch-Free Design Remote and Local Monitoring Automatic Event Notifications Network-Grade Plugs and Outlets
Product Type PDU
Technical Information
PDU Type Switched
Phase Single Phase
Plug/Connector Type NEMA L6-20P
Plug/Connector Detail 1 x NEMA L6-20P
Receptacle Type IEC 60320 C13IEC 60320 C19
Receptacle Detail 21 x IEC 60320 C133 x IEC 60320 C19
Power Description
Output Voltage Range 200 V AC - 240 V AC
Input Current 20 A
Management
Management IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
Remote Outlet Switching Yes
Interfaces/Ports
Network (RJ-45) Yes
Physical Characteristics
Mounting Orientation Horizontal/Vertical
Mount Type Rack-mountableWall-mountable
Rack Height 0U/1U/2U
Height 65.5"
Width 2.2"
Length 1.9"
Weight (Approximate) 17.20 lb
Miscellaneous
Package Contents PDU41104 Switched PDU 2 x Mounting Brackets 6 x (Flat Head M4x5) Bracket Mounting Screws 6 x (M5x12) Rack Mounting Screws/Washers Cord Retention Tray 36 x Cable Ties 6 x (M3x6) Cord Retention Tray Mounting Screws RJ45/DB9 Serial Port Connection Cable 10ft Power Cord IEC-320 C19 to NEMA L6-20P Registration and Software Download Cards
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
